Intermittent bonded ribbon production line explained

Equipment for producing rollable formats in optical-fiber manufacturing is provided by Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. This setup is designed for 12- and 16-fiber ribbons, allowing buyers to assess its capacity against their planned product range. Its split-type construction may also influence factory space and installation requirements.

Fiber Secondary Coating Line
Fibers In Stainless Steel Tube
Fiber Ribbone Line

For this specific production line, the specified construction speed is 600 m/min. Fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up are integrated in the process. When assessing suitability, the entire process matters rather than speed alone.

Factory utilities, reel requirements, available floor space, and installation conditions should be reviewed before purchase. Request the supplier’s documentation package and verify that the system matches your cable design and operating needs. Addressing these details in advance may limit setup delays and support a smoother start.

Main Takeaways

• Designed for rollable 12- and 16-fiber formats.
• Specified equipment speed: 600 m/min.
• Features a split-type construction.
• Curing, monitoring, pulling, and take-up stages are included.
• Before purchasing, verify utilities, reels, installation requirements, and supplier documentation.

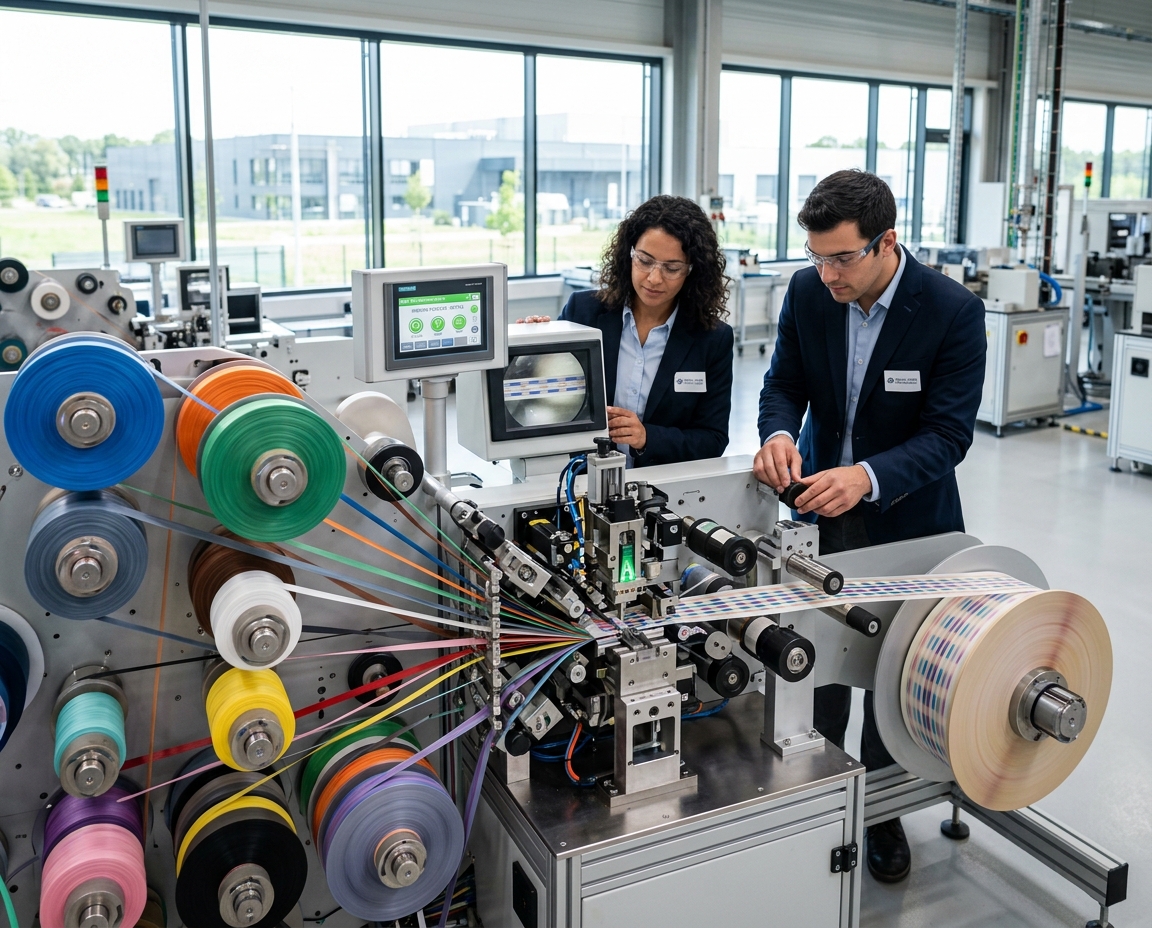

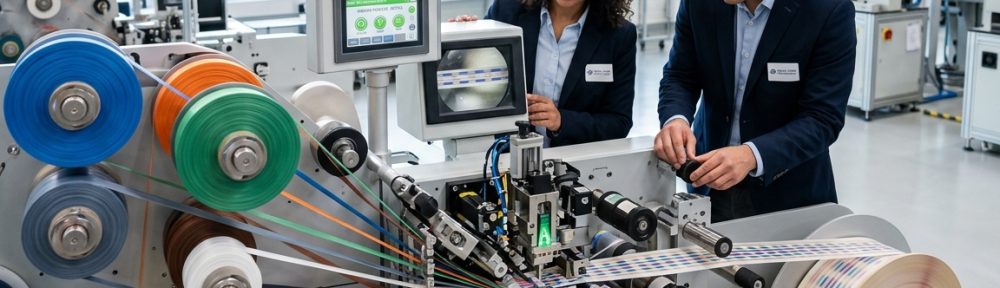

Intermittent Bonded Ribbon Production Line

Examine The Intermittent Bonded Ribbon Production Line

Three mold groups help form rollable IBR formats by positioning fibers for small adhesive dots. Operators can adjust the mold position from 0 to 15 mm to maintain consistent spacing and shape.

Produce Rollable Fiber Ribbons With Precision Bonding

The machine is fed by a 16-spool pay-off, and guide rollers with U-shaped grooves help maintain the organization of each strand. Hard-anodized roller surfaces support steady contact during processing. For 12F and 16F layouts, the adjustable valve setup uses 5+5+1 valves for 12 fibers or 5+5+5 for 16. Ask the supplier to confirm tension control settings that suit your particular cable design.

Run 12- And 16-Fiber Configurations At Up To 600 m/min

Construction speed is specified at up to 600 m/min. Pay-off reel options hold 25.2 km or 50.4 km of fiber according to the listed reel dimensions: Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm. T-type and fiber-optic take-up reels are also offered for this system. Assess whether reel capacity suits your operating needs and anticipated changeover time.

Examine The Production Line’s Main Equipment And Controls

Consistent output depends on coordinating tension, resin placement, and UV exposure. The system helps operators adjust settings to their cable design and fiber ribbon requirements.

Manage Fiber Tension, Resin Dispensing, And UV-LED Curing Together

Electro-pneumatic adjustment is provided for each pay-off unit. Through the interface, operators set adhesive-dot spacing and counts while dispensers work individually or in linked groups.

Three pre-curing ovens support the mold groups ahead of UV-LED post-curing. Ask the supplier to check resin compatibility and the relevant operating conditions.

The Siemens PLC and touchscreen display lamp current and oven temperature, generate alarms, and support preset lengths. Before purchase, review cabinet requirements and power supply needs.

Plan Installation, Operating Conditions, And Line Configuration

Before the machine is delivered, prepare a dedicated operating area. The optical fibre system requires an enclosed, clean, dry, and draft-free environment. Maintain temperatures between 15°C and 25°C and humidity at or below 85%. These conditions help safeguard fiber equipment and maintain precision during operation.

With your facilities team, assess site utilities, available electrical capacity, cabinet space, and cable design. Nitrogen at 7 bar with 99.99% purity and compressed air at 6 bar are required for the system. A three-phase, five-wire electrical supply rated 380 V ±10% is specified.

• Reserve room for the cabinet, components, resin, and access to service parts. Verify temperature settings and tension control before startup.
• Plan around the specified reel dimensions of Φ410 mm × Φ50.8 mm × 391 mm. Reels of up to 30 kg can be supported by the take-up unit.
• Include the main power feed-in cable in your site plan. Connection cables and cable trays are not included with the equipment.

Before ordering, confirm the supply scope, reel types, and installation requirements. Reviewing these items may limit setup time and avoid subsequent delays. Request supplier confirmation of suitable settings for your fiber and cable design, including lamp accuracy and operating conditions. A clear plan helps the production system start more smoothly.

Obtain Pricing For A Ribbon Production Solution Matched To Your Needs

At its stated speed of 600 m/min, this line can be assessed by manufacturers producing rollable 12- or 16-fiber formats. When requesting a quote, share your fiber layout, output goals, cable requirements, reel preference, and factory conditions.

Confirm that the proposed system includes the 16-spool pay-off, UV-LED curing arrangement, take-up capacity, and relevant options. Examine the supplied components, dispensing-head options, unit functions, and cable design prior to ordering.

Listed documents include operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. Reviewing these documents can help explain setup time and future service requirements.

Contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. to obtain pricing and configuration details that suit your output plan and site utilities. Verify the supply scope and replacement parts before purchase.
